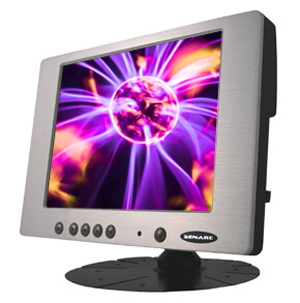

Xenarc 800YV 8-Inch Car LCD TV Monitor with VGA Input

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click ADD TO CART button to see our price. Clicking does not commit you to purchase.

Back to Xenarc LCD Main

Click For Larger Image

Xenarc Technologies Corp. is one of the first LCD manufacturers to introduce a 8" LCD screen with VGA input.  In-Car computing is the next step in computing technology, and we are committed to serving this up and coming technology sector.

Don't mistake this monitor for an ordinary video monitor that displays composite video.  This 8" monitor has 640 x 480 pixels (1920 x 480 sub-pixels) that help display crystal clear texts and ultra-sharp images through your computer's VGA signal.

The brushed, anodized aluminum faceplate gives the monitor a futuristic yet elegant look.  The entire enclosure is constructed with aluminum, making the unit both strong and light weight.

These monitors come included with an instruction manual, a monitor stand, an AC adaptor, a connection cable, and a cigarette lighter car adaptor.


• For In-Car Computing, PC, Server, GPS, and various VGA Use
• VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• Audio Input / Built-in Speaker
• NTSC / PAL Multi-System
• 4x3 Aspect Ratio
• High Resolution Display - up to 1024 x 768
• Upgraded High-Brightness CCFL
• Adjustable backlight level for night-time use
• Pixelworks High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Auto power-on upon signal detection
• Automatic display adjustment
• On Screen Display Control
• Mirror Image Flip (VGA and Video Modes)
• Vertical Image Flip (VGA and Video Modes)
• Brushed, anodized aluminum face plate
• Aluminum Casing
• Copper Stand: 360° / Height Adjustment
• VESA 75mm mounting holes
• 20-Pin heavy-duty connector
• Supports 11V DC ~ 24V DC
• "E" Mark Certified for Automotive use

• Model #: 800YV
• Screen Size:  Diagonal 8"  (4:3)
• Physical Resolution: 640 (H)  x 480 (V) VGA
• Supported Resolution:  640 x 480 ~ 1024 x 768
• Dot Resolution: 1920 x 480 = 921,600 (dots)
• LCD Brightness: 450 cd/m²
• Display Brightness: 400 cd/m²
• Operating Voltage Range: DC 11V ~ 24V, 1A
• Power Supply: DC 12V
• Power Consumption:  <8W
• Operating Temperature:  23°F ~ 158°F
• Storage Temperature:  -13°F ~ 158°F
• Dimension (in):  9W x 6.5H x 1.6D
• Weight (lb):  2.75
• FCC, CE, E13 Certification
• 18 Month Warranty
