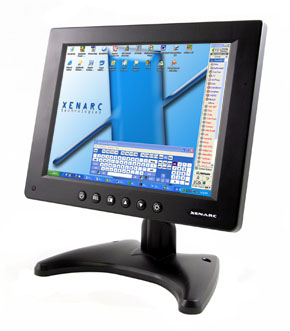

Xenarc 840TSV 8.4 inch LCD Touch Screen Computer Monitor

Item Currently Unavailable

Return to Xenarc LCD Monitor Main

KEY POINTS - 840TSV Xenarc 8.4 inch LCD Touch screen Computer Monitor:

• For In-Car Computing, PC, Server, GPS, POS, and various VGA Use
• 4-wire resistive Touch Screen (USB)
• Multi-Monitor Touchscreen Support
• VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• Audio Input x 3 / Built-in Speaker
• NTSC / PAL Multi-System
• 4x3 Aspect Ratio
• High Resolution Display - up to 1024 x 768
• High-Brightness CCFL
• High Performance Image and Video Signal Processor
• Auto power-on upon signal detection
• Automatic display adjustment
• On Screen Display Control
• Desktop Stand: 360° / Height Adjustment
• VESA 75mm mounting holes
• 26-Pin heavy-duty connector
• Anti Glare Coating
• Supports 11V DC ~ 24V DC

SUMMARY - Xenarc 840tsv 8.4 inch LCD Touch screen Computer Monitor:

Xenarc Technologies Corp. is one of the first LCD manufacturers to introduce a 8.4" LCD screen with VGA input and Touch screen. This popular product incorporates the innovation of our VGA 8.4" model along with a 4-wire resistive Touch-Screen panel. Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several of our touch screen monitors to your computer and the touch screens would work simultaneously through the multi-monitor support. The monitor is perfect for Point Of Sales systems with the included stand. The stand can also be removed for use with any VESA mounts, making it perfect for in-car computing purposes or any other applications where a small size monitor is required. This monitor comes included with an instruction manual, a removable monitor stand, an AC adaptor, a connection cable, a cigarette lighter car adaptor, and touch screen drivers for DOS, Windows, Linux, and Mac OS.


DETAILED SPECS - XENARC 840TSV 8.4 INCH LCD TOUCH SCREEN COMPUTER MONITOR:

• Model #: 840TSV
• Screen Size:  Diagonal 8.4"  (4:3)
• Physical Resolution: 800 (H)  x 600 (V) SVGA
• Supported Resolution:  640 x 480 ~ 1024 x 768
• Dot Resolution: 2400 x 600 = 1,440,000 (dots)
• LCD Brightness: 400 cd/m²
• Contrast Ratio: 300:1
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 11V ~ 24V, 1A
• Power Supply: DC 12V
• Power Consumption:  <8W
• Operating Temperature:  14°F ~ 158°F
• Storage Temperature:  -4°F ~ 158°F
• Dimension (in):  8.9W x 6.8H x 1.5D
• Weight (lb):  1.8
• FCC, CE Certification
• 12 Month Warranty

Manufacturer Link: www.xenarc.com
