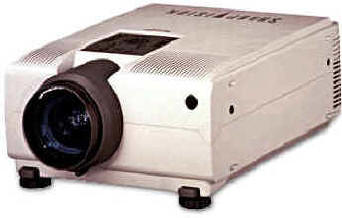

SHARPVISION XV-DW100 HDTV Compatible
Color LCD Projector
SharpVision, the world leader in
consumer home theater, has just forged a new era in LCD front projection.
The SharpXV-DW100 is one of the most compact units available, yet it makes
movies, sports - even computer imagery - larger than life! The SharpVision
XVDW100
accepts high definition input signals in both 1080i and 720P formats and
delivers a high resolution image that captures the realism made possible
by HDTV.
HDTV Compatible 1080i/720p Input
Aspect Ratio 16:9 & 4:3
Resolution 750 TV Lines
Brightness: 1000 Ansi Lumen
Contrast Ratio 400:1
Component Inputs 2
Anamorphic DVD Capable
3D Y/C Digital Comb Filter
Screen Size 40" to 300" Diagonal
Number of Pixels 3 Panels, each containing 786,432 Pixels (1.3"
Active Matrix, Polysilicon TFT LCD)
Pixels Per Panel 1024 dots x 768 lines
Computer Compatibility IBM (XGA, SVGA, VGA), Mac
Video System NTSC / PAL / SECAM-Interlaced or Progressive Scan
Lens Type 1:1.3 Power Zoom / Focus
Projection Lamp Type/Life 150 Watt Ultra High Pressure Lamp

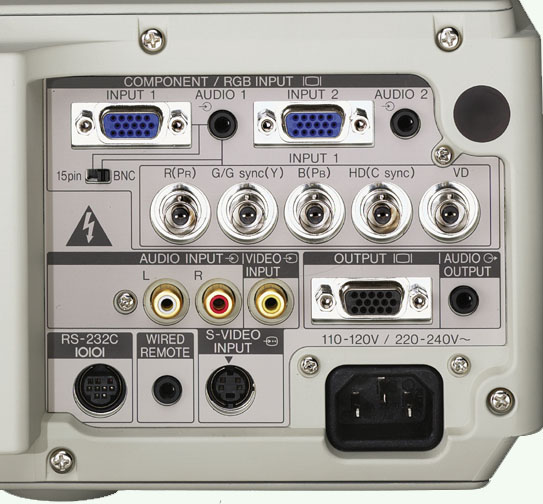

RGB Input Type 15 Pin D-Sub (Female x 2) / BNC -Connector (R, G, B, Hv, Hd)
x 1
Component Input Type (Y, Pb, Pr) BNC x 1
S-Video Type (4 -pin DIN) x 1
Composite Video Type (RCA) x 1
Audio Input Type (RCA L/R x 1)
Wired Remote Control Type (3.5mm Mini-Jack x 1)
RS-232C Serial Port RS-232C Serial Port x 1
Audio Output Type L/R (3.5mm Mini-Jack x 1)
Built-In Line Doubler
Gamma Correction
Keystone Correction
Color Temperature Adjustment
Detachable AC Cord
Optional Ceiling Bracket
Wireless Remote Control
Built-In Audio
Power Source 110-240 VAC, 50/60 Hz
Power Consumption 265w
Dimensions 10.3" x 5.0" x 14.0" (w x h x d) (inches)
Weight 15.9 lbs.
