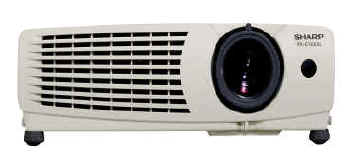

SHARP XV-Z7000 HDTV Compatible
Color LCD Projector
The Sharp XV-Z7000 delivers high-definition images of 1.44
million pixels by combining three internal high-resolution (800 x 600-dot)
0.9-inch TFT LCD panels, as well as an impressive 1,000 ANSI lumens of
brightness thanks to a newly developed 150 W NSH (high-pressure mercury)
lamp and a new optical mechanism design. Images are brilliantly clear and
easy to view (also comes equipped with a Two-Level Brightness Switch to
project at 700 ANSI lumens).
Easy to transport, set up and store, the Sharp XV-Z7000 Lcd
Projector is being offered as a
home theater model which will let you enjoy in your own home life-like,
high-resolution video images to the fullest, including prerecorded video
software and digital satellite broadcasts.

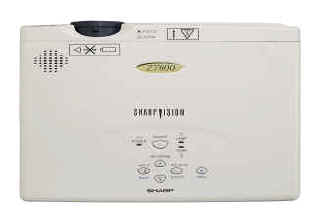

Compact footprint the size of a B5 file folder
makes the XV-Z7000 easy to set up and store
The XV-Z7000 is the size of a B5 file folder, with a footprint of
only 260 mm (W) x 207 (D) and a height of just 74 mm (H). It
easily fits on a table or desk top, and needs only a small amount
of space for storage when not in use.
2.
Brilliantly clear and easy-to-view images
thanks to 1,000 ANSI lumens of brightness
A newly developed 150 W NSH (high-pressure mercury) lamp and a
newly optical mechanism design deliver a brilliant 1,000 ANSI
lumens of brightness, projecting crisp, clear, bright images from
corner to corner. Plus, a Two-Level Brightness Switch lets you
switch to a lower 700 ANSI lumen brightness (theater mode).
3.
Special image enhancement circuitry built-in
The XV-Z7000 features a 2-3 Pulldown Function that generates high
quality video images by converting DVD images recorded at 24 fps
(frames per second) to 60-fps progressive-scan video images. In
addition, a Four-Level Color Temperature Selector features lets
you choose the optimum color temperature for images.
4.
Compatible with digital satellite broadcasts
The XV-Z7000 is equipped with both S-Video and composite video IN
jacks. This versatile model can project high-quality video images
simply by connecting an optional digital broadcast satellite (BS)
tuner (purchased separately).
Note: 1080i and 720p pictures are displayed as compressed images.
Sharpvision XVZ7000U Specifications:
Model name
Sharpvision XV-Z7000U
LCD panel
Panel size
0.9-inch, high-temperature polysilicon TFT LCD
panels x 3
Drive system
TFT (thin-film transistor) active-matrix
Number of pixels
1.44 million pixels (800 H x 600 V) x 3 panels
Lens
1.2X Motorized zoom, F2.3 to F2.6, f = 36.0 to 43.2
mm
Projection lamp
150 W NSH lamp
Screen brightness
1,000 ANSI lumens; switchable to 700 ANSI lumens
Contrast ratio
300:1
Edge brightness ratio
90%
Resolution
Horizontal resolution: 520 TV lines (with S-video
input)
Audio output
1 W (monaural)
Speakers
2.8-cm.dia. x 1
Rated voltage
100 to 240 VAC
Rated line frequency
50/60 Hz
Power consumption
230 W (5 W with remote on standby)
Operating temperature range
5 to 35
Storage temperature range
-20 to
Video input compatibility
Compatible with digital satellite broadcasts
(1125i, 750p, 525p, 525i); NTSC, PAL, PAL-M, PAL-N, SECAM
Computer resolution
True SVGA (800 x 600) display; high-quality
compressed SXGA (1280 x 1024) display

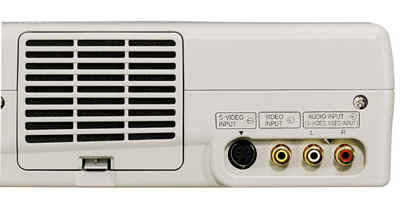

Input jacks
Composite video IN
2 sets (1 set: RCA x 3; 1 set: 15-pin mini-D-Sub
connector)
Audio IN x 1 (stereo mini-jack)
S-Video IN
2 sets (S-Video x 1 , RCA x 1)
Audio IN x 1 (RCA stereo jack)
RGB Computer IN
Computer RGB IN x 1 (15-pin mini D-sub)
Audio IN x 1 (stereo mini-jack)
Other
Serial I/O x 1 (RS-232C compatible)

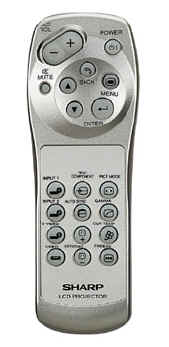

Remote control unit receiver
Front panel x 1, rear panel x 1
Case
Plastic
Main unit dimensions
10.25" (W) x 8.15" (D) x 3"
(H) (excluding protuberances)
