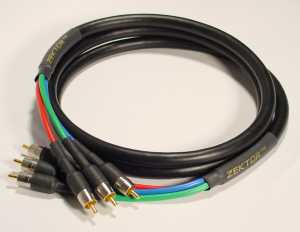

Component Video
Cable
- With HDTV video bandwidth exceeding 30MHz, the quality of the cable
and connectors can make a viewable difference in image quality. Our
video cables use 200MHz (-3dB) coax cable, and true 75 ohm RCA
connectors. The connectors also feature Beryllium Copper, Gold
Plated ground contacts to provide positive contact without the
'death grip' found with lower quality cables. These cables and
connectors were specifically developed for 200MHz video applications
by Canare, a leader in the broadcast video cable industry. A
definite upgrade from the 50 year old design of the RCA connector!
Specifications:
Loss at 200MHz (15ft cable)
-0.5dB
Cable impedance
75 Ohms
Connector impedance
75 Ohms
Differential delay
< 2.2 nanoseconds
Double Shielding
100%foil+93%braid
Center conductor
Solid Copper
Diameter (not inc. ends)
0.453"
