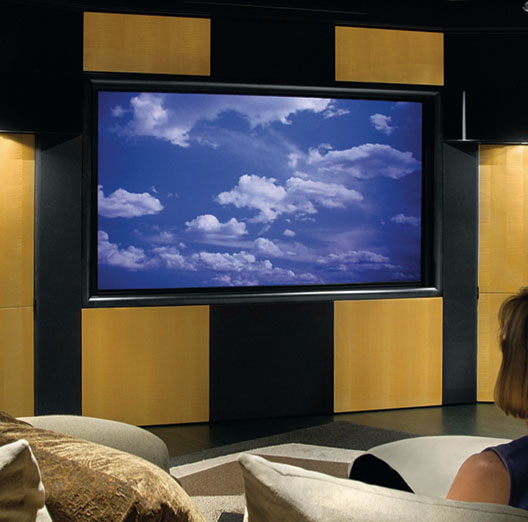

DiamondScreen—the first rear projection screen designed specifically
for video and data projection.
Well suited for most A/V applications except those with large veritcal
viewing cones.
Panoramic 180° horizontal viewing cone, and the largest vertical
viewing cone of any product of its type.
Gain Chart.
Unlike conventional rear screens, the DiamondScreen is cast (molded)
and derives its incredible optical performance from its patented Fresnel/lenticular
lens system.
Superior center-to-corner brightness ratio.
The widest range of sizes—and the largest sizes—in the industry.
The world's most sophisticated, most efficient rear projection screen.
Available in any custom size through a maximum overall size of 120" x
160".
Can be used in our Retro/QA (portable rear projection systems),
MultiScreen System, RPX/Complete or any of our VideoWalls in conjunction
with our Projector Support Structure.
Factory installed Cineframes are also available to simplify
installation.
Warranted for one year against defects in materials and workmanship.
System 400 Frame
Simplifies your installation.
Cut a rough opening 1/4" larger than the overall frame size, slide the screen in and bolt into place.
No finish carpentry required.
Has a 1-3/4" wide dress trim that hides the opening.
The audience only sees an attractive frame around a rear screen.
Reduces clear viewing area by 1" in each dimension.
Black finish.
Suitable for 3/8" Cineplex in sizes through in 9' x 12", 1/4" Cineplex in all sizes, IRUS High Contrast Black and Vortex in all sizes, DiamondScreen in sizes through 160" diagonal , and 1/4" and 3/8" Cineglass in sizes through 91" x 121"
System 200 Frame
Same sturdy design as the System 300, but extruded to a slightly thinner wall thickness.
Suitable for IRUS and Vortex in all sizes; 1/4" and 3/8" Cineplex in all sizes; 1/4" and 3/8" Cineglass in sizes through 8' x 10'; DiamondScreen through 160" diagonal.
System 100 Frame
Simple, clean frame for smaller rear screens.
Adds 1-3/4" to overall height and width of screen; reduces viewing area by 7/8" in each dimension.
Suitable for 1/4" Cineglass through 4' x 5'; DiamondScreen, 1/4" Cineplex, IRUS
and Vortex through 100" diagonal and High Contrast Black in all sizes
SUMMARY - Draper Diamond
Rear Video Projector Screen
The brightest rear screen image in the world—3.5 gain on axis.DiamondScreen —the first rear projection screen designed specifically for video and data projection. Particularly well suited for use with CRT or low light and low resolution output single lens projectors. Panoramic 180° horizontal viewing cone, and the largest vertical viewing cone of any product of its type. Grey high contrast optical tint, for superior color contrast. Anti-reflectance properties, for superior performance, even under conditions of high ambient light. Unlike conventional rear screens, the DiamondScreen is cast (molded) and derives its incredible optical performance from its patented Fresnel/lenticular lens system. Factory installed frames available.
