Draper ORBITER
Motorized Ceiling Projector Mount
Call For Best Pricing
Back to
Draper Projector Lift Motorized Lift Main |
|
|
Add-ons |
Price |
|
DC Motor Control (121161) |
$183.49 |
*Wireless
Transmitter/Receiver
(RF type) (121062) |
$182.68 |
Extra wireless transmitter
(RF type) (121063) |
$116.82 |
|
*Infrared Remote
Transmitter/Receiver (121065) |
$82.98 |
|
Extra IR remote transmitter (121066) |
$66.23 |
|
Low voltage wall switch (121059) |
$52.42 |
Ceiling Access Door
White Finish (300007) |
$259.98 |
Ceiling Access Door
Accepts Ceiling Tile (300008) |
$425.25 |
|
*DC Motor Control
must be used if IR or RF control is required. |
|
 |
 |
Click For Larger Image |
|
|
|
Click For Larger Image |
OVERVIEW - Draper orbiter Motorized Ceiling Projector Mount:

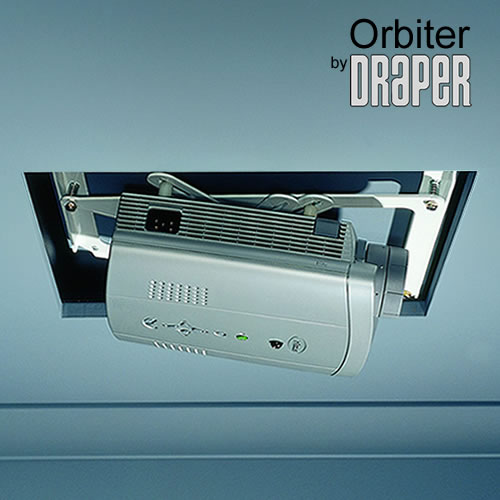

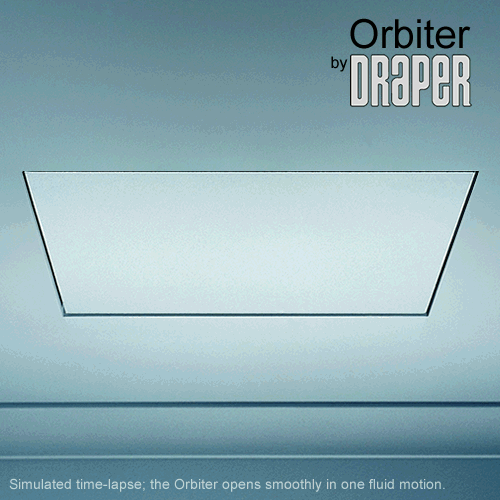

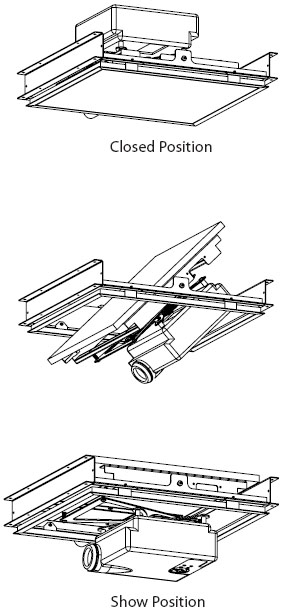

The Orbiter is an exciting projector mounting solution. This totally unique lift conceals your projector above the ceiling and quickly rotates it into the “show” position at the touch of a switch or wireless transmitter.
Ingenious design allows the Orbiter to fit in small ceiling cavities. The Orbiter is supplied with a universal-style bracket that allows for easy attachment of a variety of projector models. The Orbiter can be used for video conferencing cameras, speakers, etc. Angled ceiling adapter allows Orbiter to be installed on angled ceilings or in walls.
Operated by optional IR or RF remote control, standard wall switch, or integrated into your control system, Orbiter will add a touch of class and sophistication to any room. The Orbiter motor is a DC–Low Voltage Motor, 12v, which allows for easier control and wiring of the lift.
|
FEATURES - Draper Orbiter Motorized Ceiling Projector Mount:
- Can be installed in an angled ceiling or even into a wall
- Uniquely versatile, ingenious design—fits in small cavities. Conceals projector and rotates it into "show" position
- You won't see the projector until it rotates into place
System Options
- Plenum Housing—Aluminum enclosure for use in return air plenum. Includes intake and exhaust fan system with couplers for connection to ventilation ducts.
- Angled Ceiling Adaptor—For mounting in angled or cathedral ceilings, or even vertical walls.
- Ceiling Access Door—For above-the-ceiling access.
- DC Motor Control—Since Orbiter has a DC motor, this control unit is required for IR or RF remote control, or when interfacing with a master control system.
- Control Options—3-Button 12V DC switch, IR or RF.
|
SPECIFICATIONS - DRAPER ORBITER MOTORIZED CEILING PROJECTOR MOUNT:
Model A
- Overall Size (w x l x h) 23” x 25 9/16” x 14”
- Ceiling Panel Size (w x l) 20 11/16” x 18 13/16”
- Installation Height Required without Plenum 14”
- Net Weight of Unit 33 lbs.
- Lifting Capacity 26 lbs.
- Maximum Projector Width 17”
Model B
- Overall Size (w x l x h) 27” x 29 ½” x 16”
- Ceiling Panel Size (w x l) 24 5/8” x 22 ¾”
- Installation Height Required without Plenum 16”
- Net Weight of Unit 38 lbs.
- Lifting Capacity 26 lbs.
- Maximum Projector Width 20¾”
Manufacturer Homepage: www.draper.com
|
