Draper PHANTOM
Motorized Drop Down Ceiling Projector Mount
Call For Best Pricing
Back to
Draper Projector Lift Motorized Lift Main
|
|
|
Add-ons |
Price |
|
DC Motor Control (121161) |
$183.49 |
*Wireless
Transmitter/Receiver
(RF type) (121062) |
$182.68 |
Extra wireless transmitter
(RF type) (121063) |
$116.82 |
|
*Infrared Remote
Transmitter/Receiver (121065) |
$82.98 |
|
Extra IR remote transmitter (121066) |
$66.23 |
|
Low voltage wall switch (121059) |
$52.42 |
Ceiling Access Door
White Finish (300007) |
$259.98 |
Ceiling Access Door
Accepts Ceiling Tile (300008) |
$425.25 |
|
*DC Motor Control
must be used if IR or RF control is required or if using systems
like AMX, Crestron or Extron. |
Click For Larger Image
|
 |
 |
| Click For Larger Image |
OVERVIEW - Draper phantom Motorized Ceiling Projector Mount:

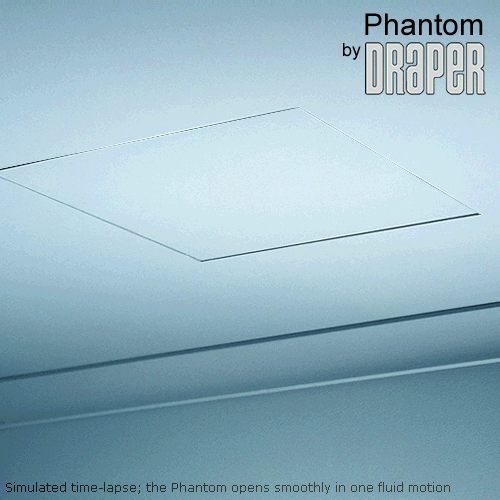

The totally unique Phantom is a clever alternative to other video projector lifts. It quickly and quietly dips the projector
out of the ceiling and into the “show” position at the touch of a switch or wireless transmitter. The audience will think it materialized like an apparition.

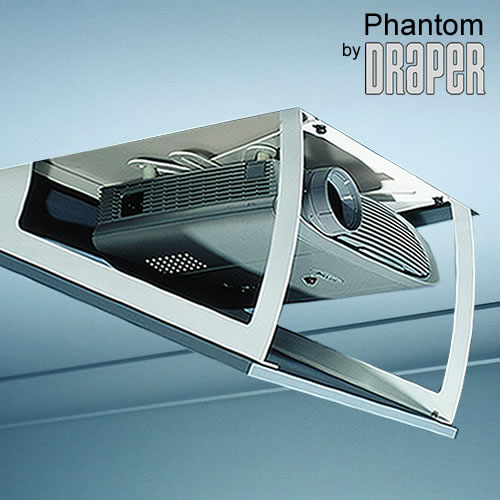

The projector is mounted into a framework above the ceiling. When activated, a trapdoor lowers the projector into your room using a precision actuator with pre-set limits. The projector is easily aligned during installation to provide a direct light path onto your Draper projection screen.
Plus, the Phantom is supplied with a universal-style bracket that allows for easy attachment of a variety of projector models. Two models to choose from as determined by size of projector. The Phantom motor is a DC–Low Voltage Motor, 24v, which allows for easier control and wiring of the lift. The Phantom can also be used for video conferencing cameras, speakers, etc.
|
FEATURES - Draper Phantom Motorized Ceiling Projector Mount:
- This compact lift hides in the ceiling. Reveals itself at just the right time.
- It quickly and quietly dips the projector out of the ceiling and into the "show" position.
- Two sizes available, Models A and B, to fit projectors up to 26 lbs
System Options
- Plenum Housing—Aluminum enclosure for use in return air plenum. Includes intake and exhaust fan system with couplers for connection to ventilation ducts.
- Ceiling Access Door—For above the ceiling access.
- DC Motor Control—Since Phantom has a DC motor, this control unit is required for IR or RF remote control, or when interfacing with a master control system.
- Control Options—3-button 24V DC switch, IR or RF.
|
SPECIFICATIONS - DRAPER PHANTOM MOTORIZED CEILING PROJECTOR MOUNT:
Model A
- Overall Size (d x w x h) 25 5/16" x 15 ¾" x 14"
- Ceiling Panel Size (w x l) 15 11/16" x 15 ¾"
- Installation Height Required without Plenum 14 ½"
- Net Weight of Unit 18 lbs.
- Lifting Capacity 26 lbs.
- Maximum Projector Width 13"
Model B
- Overall Size (d x w x h) 32 ¾" x 19 ¾" x 17"
- Ceiling Panel Size (w x l) 19 11/16" x 19 11/16"
- Installation Height Required without Plenum 17 ½"
- Net Weight of Unit 27 lbs.
- Lifting Capacity 26 lbs.
- Maximum Projector Width 16 7/8"
Manufacturer Homepage: www.draper.com
|
