Draper REVELATION Motorized Recessed Ceiling  Projector Mount

Call For Best Pricing

Back to Draper Projector Lift Motorized Lift Main


Click For Larger Image

OVERVIEW - Draper revelation Motorized Recessed Ceiling  Projector Mount:

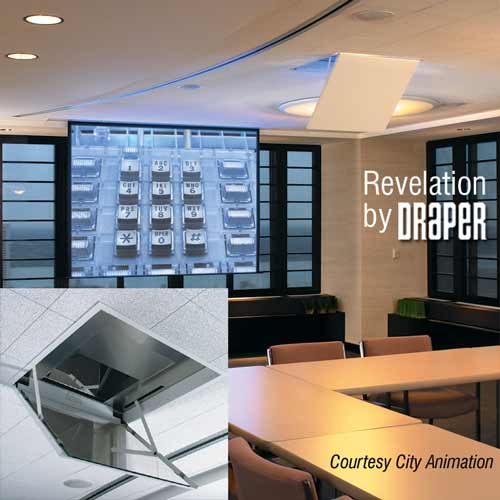

With a Revelation the projector is permanently concealed above the ceiling. You won’t see or hear the projector— not before, during or after the show. Revelation truly fits into a 2' x 2' grid style ceiling. It can also be used with a reveal style grid ceiling (Armstrong’s Silhouette style grid system). Mirrors are optical grade glass—94% reflective. The Revelation’s highly reflective dual first surface mirror system delivers a perfect picture to your screen at the touch of a switch or wireless controller.


FEATURES - Draper Revelation Motorized Recessed Ceiling  Projector Mount:

• The Draper Revelation permanently conceals the projector—and its noise—above the ceiling at all times.

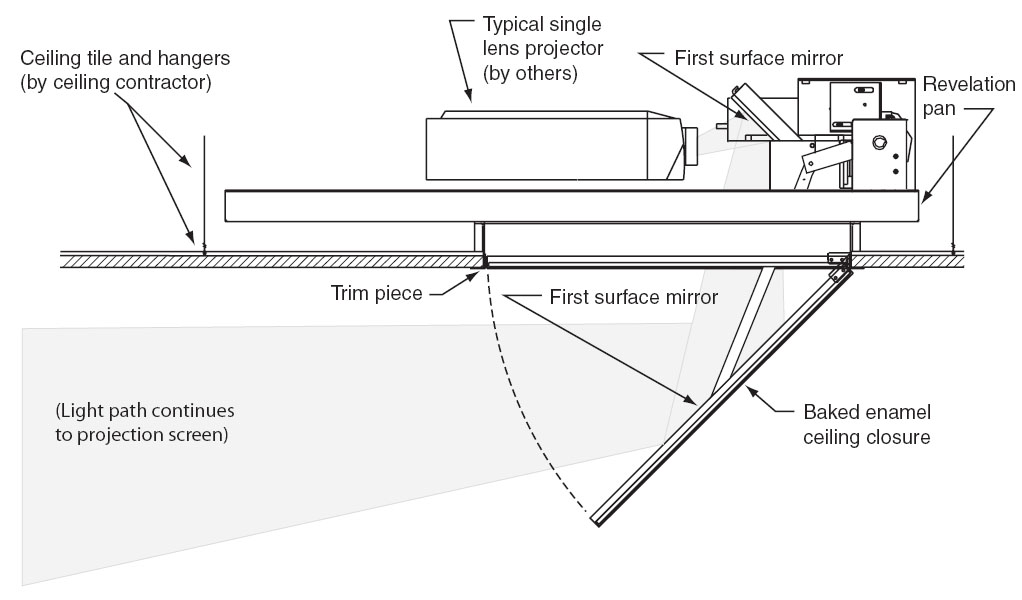

• Has dual first surface mirror system optical grade glass mirrors that are 94% reflective for optimum flatness and reflectivity


System Options
• Plenum Enclosure—Aluminum enclosure for use in return air plenum. Includes intake and exhaust fan system with 4" couplers for connection to ventilation ducts.
• Ceiling Access Door—A 2' x 2' hinged door provides above the ceiling access, maintenance or repairs without having to damage the ceiling. Available with a white painted finish or recessed to accept ceiling tile.
• Glass Shield—Made of anti-reflective glass and installed between the Revelation and the first surface mirror/ceiling closure. Reduces projector noise by an additional 80%, and prevents cigarette smoke, grease or other harmful substances from reaching the projector. Virtually none of the projected light is lost as it passes through the Shield.

SPECIFICATIONS - DRAPER REVELATION MOTORIZED RECESSED CEILING PROJECTOR MOUNT:

Model A
• Overall unit size (HWL) 13" x 38-1/4" x 34"
• Required space above ceiling 13-5/8" x 38-1/4" x 34"
• Clearance below ceiling approx. 17"
• Rough opening for door 23-1/2" x 23-1/2"
• Capacity 100 lbs.
• Door, travel distance (down) approx. 17"
• Travel time 9 sec.
• Net weight 85 lbs.


Model B
• Overall unit size (HWL) 13" x 38-1/4" x 44"
• Required space above ceiling 13-5/8" x 38-1/4" x 44"
• Clearance below ceiling approx. approx. 17"
• Rough opening for door 23-1/2" x 23-1/2"
• Capacity 100 lbs.
• Door, travel distance (down) approx. 17"
• Travel time 9 sec.
• Net weight 90 lbs.


  Revelation Optional Accessories

  Revelation Shield
• Made of anti-reflective glass and installed between the Revelation and the first surface mirror/ceiling closure. The Shield serves two valuable purposes: It reduces projector noise in the audience area by more than 80%, and it prevents cigarette smoke, grease or other harmful substances from reaching the projector. Virtually none of the projected light is lost as it passes through the Shield.



MiroClear
• A superior quality cleaning and restoration kit designed specifically for all first surface glass mirrors. Improves image quality, maintains new mirrors to the highest standards, brings new life to older mirrors and restores reflectivity loss caused by dust, dirt, fingerprints and grimy build-up that accumulates and robs mirror of critical reflectivity.



Ceiling Access Door
• If you plan to install your Draper Video Projector Lift above a finished ceiling, these access doors provide above-the-ceiling access for cleaning, maintenance or repairs without damage to the ceiling. Available with a white painted finish, or recessed to accept ceiling tile.

Manufacturer Homepage: www.draper.com
