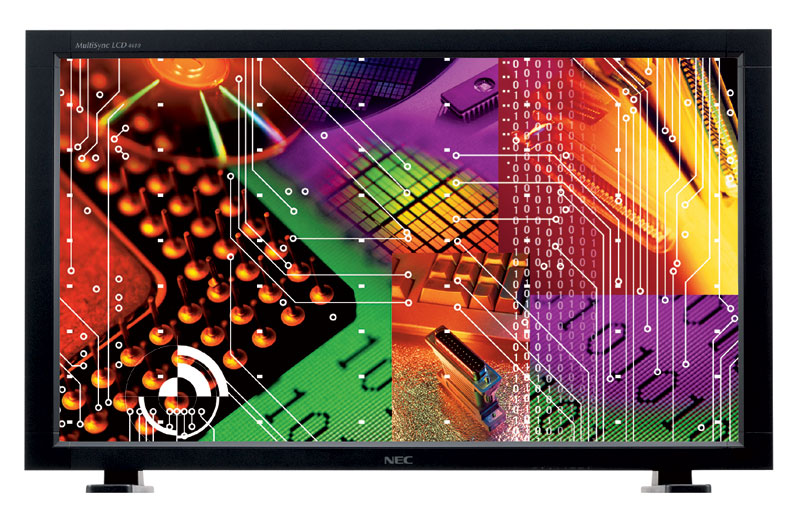

NEC LCD4610BK 46 inch HDTV LCD Tv Monitor nec lcd4610-bk

Accessories:

Included: AC power cord, user manual, wireless remote control, batteries, 15-pin RGB cable, CD-ROM

Optional: External Speakers (Available Late Summer 2005)

Brightness

450 cd/m3 (typical)

Colors

257 RGB levels, more than 16 million colors

Contrast Ratio

800:1 (typical)

Dimensions:

Net with stand:
43.8” (W) x 27.1” (H) x 13.8” (D)
1112.8 x 687.1 x 351 mm

Net without stand:
43.8” (W) x 25.8” (H) x 5.5” (D)
1112.8 x 655.8 x 140 mm

Input Signal:

Video: ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Input:

RGB1: DVI-D
RGB2: Analog D-sub
RGB3: Analog BNC
Video 1: Composite RCA or S-Video
Component Video 1 (DVD/HD): Component BNC
Audio: Audio 1 (minijack), Audio 2 and 3 Stereo (RCA)
Internal Speaker: None
External Control: RS232, DDC-CI

Limited Warranty:

3 year including backlight

Operating Altitude:

4,200m/13,780 ft.

Operating Humidity:

20-80%

Operating Temperature:

5-40 C/41-104 F

Pixel Pitch

0.746mm

Power Consumption

(typical)
On: 260W
Power Savings Mode: <5W

Recommended Resolution:

1360 x 768 depends on graphics card used

Regulatory Approvals:

UL 60950/CSA C22.2 No. 950/TUV-GS/EN60950/FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN1000-3-3/CE

Resolutions Supported:

720 x 400 @ 70-85Hz
640 x 480 @ 60-85Hz
800 x 600 @ 60-85Hz
832 x 624 @ 74.5Hz
1024 x 768 @ 50-85Hz
1280 x 1024 @ 50-85Hz
1600 x 1200 @ 60 Hz (Compressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
1366 x 768 @ 50-85 Hz
NTSC/PAL,SECAM,4.43NTSC,Pal60 HDTV,480i, 480p, 720p, 1080i

Storage Altitude:

12,000m/39,370 ft.

Storage Humidity:

10-90%

Storage Temperature:

-20-60 C/-4-140 F

VESA Hole Configuration Spec.

200 x 200 mm (8 hole) / 200 x 100 mm (6 hole)

Viewing Angle:

Up 85 / Down 85 / Left 85 / Right 85 (typ.)

Voltage Rating:

AC 100-120V / AC 220-240V @ 50/60 Hz

Weight:

Net with stand: 70.5 lbs. / 32 kg
Net without stand: 67.2 lbs. / 30.5 kg

Output:

RGB: Daisychain RGB2, RGB3
Video: Daisychain Video1
Audio: Daisychain - Selected Audio in
Control: RS232 for multiple monitor control
Audio Amplifier: 7W x 7W

Additional Features

Power Management, Plug and Play (DDC/CI, DDC2B), PIP (Remote), Multi level Zoom, FullScan, 6 axis color, CableComp, TileMatrix, TileComp, Screen Saver, Rapid Response, Video Ready (no tuner), Infrared remote control included
