Panasonic PTAE900U 1100 ANSI Lumens Widescreen HDTV Home Theater LCD Projector

Check out the Panasonic PT-AE900U

KEY POINTS - PTAE900U Panasonic Widescreen Lcd Video Projector:

• Native Resolution: 1280 x 720
• Contrast Ratio: 5500:1
• Brightness: 1100 cd/m2
• Aspect Ratio: Widescreen 16:9
• HDMI, Component, S-Video, PC, Composite Video inputs
• Progressive Cinema Scan (3/2 pull down) automatically detects an input signal from filmed material, and creates an optimum progressive scan processing method to assure faithful reproduction of the original image
• 2X optical zoom lens allows image size adjustment to accommodate any room layout or screen size
• 10-bit digital processing and 10-bit gamma correction that accurately reproduces subtle changes in brightness and hue and quadruples the number of displayable colors to more than 1 billion with over 1024 gradations
• Projector AI automatically adjusts lamp brightness to the optimum level to match the characteristics of the picture in real time

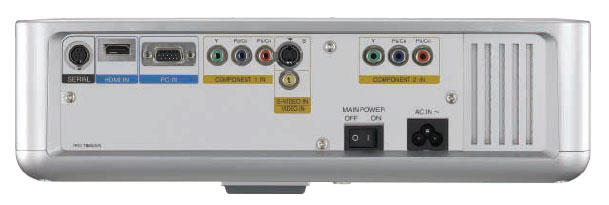

Panasonic PT-AE900U LCD Projector Rear Panel View
(Click For Larger Image)

SUMMARY - Panasonic Ptae900u 1100 ANSI Lumens Widescreen HDTV Home Theater Projector:

The PT-AE900U from Panasonic is a native high-definition lcd home theater projector that produces stunning, film-like images with a dramatic 5500:1 contrast ratio. Capable of displaying ultra-sharp, ultra-clear HD pictures up to 14.5-feet wide, the PT-AE900U is equipped with advanced, new digital picture-enhancing features allowing you to enjoy "Hollywood picture quality" in the comfort of your own home.

The PT-AE900U offers a host of image optimizing features including a new Dynamic Iris optical system that extends the iris range by 30% for a breathtaking 5000:1 contrast ratio. Dynamic Iris, with scene tracking capability, constantly adjusts the light volume and gamma curve in real time, so the picture is always optimal and transitions between scenes are amazingly smooth and natural. The PT-AE900U is also outfitted with new Smooth Screen technology that effectively eliminates the "screen door effect" (visible spacing between pixels) and gives the projector a sharp, detailed HD picture that is remarkably smooth and film-like.

DETAILED SPECS - PANASONIC PT-AE900U HOME THEATER PROJECTOR:

• Power supply: 100–240 V AC, 50/60 Hz

• Power consumption: 180 W (Approx. 0.08 W in standby mode with fan stopped)

• Optical system: Dichroic mirror separation/prism synthesis system

• LCD panel: Panel size: 0.7˝ (diagonal) (16:9 aspect ratio)

• Display method: Transparent LCD panel (x 3, R/G/B)

• Drive method: Active matrix

• Pixels: 921,600 (1280 x 720) x 3, total of 2,764,800 pixels

• Pixel configuration: Stripe

• Lens: Manual zoom (1 - 2.0) / Manual focus
  F 1.9 - 3.1, f 21.7 mm - 43.1 mm

• Lamp: 130 W UHM lamp

• Screen size: 40–300 inches (1,016–7,620 mm) diagonally, 16:9 aspect ratio

• Colors: Full color (1,070,000,000 colors)

• Color system: PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43

• Screen aspect ratio: 16:9 (4:3 compatible)

• Brightness: 1,100 lumens

• Center-to-corner uniformity ratio: 85%

• Contrast: 5,500:1 (full on/full off)

• Resolution: RGB: 1280 x 720 pixels (1920 x 1080 pixels with compression)

• Scanning frequency:
  RGB: Horizontal: 30–70 kHz, Vertical: 50–87 Hz
  YPBPR: 480i (525i): fH 15.75 kHz; fV 60 Hz
  576i (625i): fH 15.63 kHz; fV 50 Hz
  480p (525p): fH 31.5 kHz; fV 60 Hz
  576p (625p): fH 31.25 kHz; fV 50 Hz
  720p (750p): fH 45 kHz; fV 50 Hz
  720p (750p): fH 45 kHz; fV 60 Hz
  1080i (1125i): fH 33.75 kHz; fV 60 Hz
  1080i (1125i): fH 28.125 kHz; fV 50 Hz
  S-Video: fH 15.625 kHz; fV 50 Hz (PAL, SECAM, PAL-N)
  fH 15.75 kHz; fV 60 Hz (NTSC, NTSC 4.43, PAL-M, PAL 60)

• Optical axis shift: Horizontal and Vertical

• Keystone correction range: Horizontal: approx. ±30°

• Installation: Ceiling/desk, front/rear (menu selection)

• Language: English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai

• Terminals:
  HDMI IN: 19-pin x 1
  PC (RGB) IN: D-sub HD 15-pin (female) x 1 R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 Ω HD/VD/SYNC: TTL, high impedance (positive/negative polarity)
  COMPONENT IN: RCA pin (Y, PB/CB, PR/CR) x 2, Y: 1.0 p-p, 75 Ω PB/PR (CB/CR): 0.7 Vp-p, 75 Ω
  VIDEO IN: RCA pin x 1, 1.0 Vp-p, 75 Ω
  S-VIDEO IN: Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 Ω
  SERIAL (out): Mini DIN 8-pin (female) x 1 (RS232C based)

• Power cord length: 3 m

• Cabinet material: ABS/PC

• Dimensions (W x H x D): 4 13-3/16˝ x 3-23/32˝ x 10-5/8˝

• Weight: 7.9 lbs. (3.6 kg)

• Operating environment:
  Temperature: 32°–104°F (0°–40°C)
  Humidity: 20%–80% (no condensation)

• Remote Control Unit:
  Power supply: 3 V DC (UM-3 (AAA) battery x 2)
  Operation range: Approx. 7 m when operated from directly in front of the signal receptor
  Dimensions (W x H x D): 2-1/20˝ x 7-27/32˝ x 1-1/8˝
  Weight: 6 oz. (170 g) (including batteries)

• Supplied accessories: Power cord, Wireless remote control unit, Batteries for remote control (UM-3 x 2)

Manufacturer Link: www.panasonic.com
