OVERVIEW - Panasonic
Ptae700u 1000 ANSI Lumens Lcd Video Projector

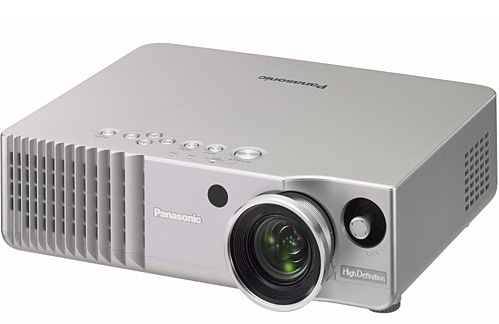

The PT-AE700 is the most impressive home
theater projector ever from Panasonic. Compact enough to sit on a bookshelf,
it is packed with advanced features designed to bring you a whole new level
of home theater enjoyment. Dynamic contrast is now 2,000:1, by far the best
in its product class, so the picture is sharp and clear even in a well-lit
room.
In addition, the new integrated cinema
quality circuitry includes a Dynamic Iris optical system that constantly
adjusts the brightness and gamma characteristics in real time, so the
picture is always optimal and transitions between scenes are more natural.
Its innovative color correction system incorporates Cinema Color Management
technology to ensure faithful color reproduction.
This cinema-quality integrated circuitry brings you on-screen colors just
as you would see them in a movie theater. Finally, the PT-AE700 comes with the advanced Smooth
Screen technology that brought great acclaim to the AE500. It effectively
eliminates the screen door effect that some LCD projectors are susceptible to, so the images
you see on the screen are natural and lifelike.
FEATURES - panasonic
ptae700u lcd home theater projector
Contrast Ratio
Brightness
Aspect Ratio
Native Resolution
2000:1
1000 ANSI Lumens
16:9
1280 x 720
SPECIFICATIONS - PANASONIC
PT-AE700U HOME THEATER PROJECTOR
Power supply:
100–240 V AC, 50/60
Hz
Power consumption:
180 W (Approx. 3 W in standby mode with
fan stopped)
Optical system:
Dichroic mirror separation/prism
synthesis system
LCD panel:
0.7˝ (diagonal)
Panel size:
(16:9 aspect ratio)
Display method:
Transparent LCD panel (x 3, R/G/B)
Drive method:
Active matrix
Pixels:
921,600 (1280 x 720) x 3, total of
2,764,800 pixels
Pixel
configuration:
Stripe
Lens:
Manual zoom (1 - 2.0) / Manual focus F 1.9 - 3.1,
f 21.7 mm - 43.1 mm
Lamp
130 W UHM lamp
Screen size:
1,016–7,620 mm
(40–300 inches) diagonally, 16:9 aspect ratio
Colors:
Full color (16,777,216 colors)
Color system:
PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC,
NTSC 4.43
Screen aspect
ratio:
16:9 (4:3 compatible)
Brightness:
1,000 lumens
Contrast:
2,000:1*3 (full on/full off)
Resolution:
RGB: 1280 x 720 pixels (1920 x 1080
pixels with compression)
