**Video Card
Required
For Home Theater Use and is included in our
price**
KEY POINTS - PDP425CMX Pioneer 42 inch HDTV Plasma Tv Screen:
Resolution 1024 x 768
Aspect Ratio 16:9
Brightness 1400 cd/m2 (white peak, panel)
DVI w/HDCP input
Includes video card, tabletop feet
Please note: This Pioneer Plasma display
does not contain a tv tuner, therefore a digital cable or
satellite box will be required to receive television signals. If you wish to
view non-digital cable tv, we recommend the
TVP500F card from
Aurora Multimedia. This video card has a built-in tv tuner.
SUMMARY -
Pioneer pdp425cmx 42 inch HDTV Plasma Tv Screen:
Pioneer's newest professional plasma tv display, the PDP-425CMX offers the flexibility of Expansion Solutions in a 42" size and displays images with a new level and
brilliance as well as exceptional depth. PureVision and the Pure Drive system ensure the image you project is compelling and true-to-source. This next generation panel has pure digital processing and is ideally suited for a wide range of professional, home theater and public display applications.
Effective Screen Size (W x H) 36-9/32” x 20-9/32” (921.6 x 515.3 mm) (42in. Diag.)
Aspect Ratio 16:9
Number of Pixels 1024 (Hor.) x 768 (ver.)
Pixel Pitch 0.9(Hor./RGB trio) x 0.671 (Ver.)mm
Brightness 1400 cd/m2 (white peak, panel)
Dimensions (W x H x D) 40-1/4” x 24-1/32” x 3-27/32” (1022 x 610 x 98 mm)
Weight 67 lbs, 4 oz (30.5 kg)
Power Consumption 285W
Power Requirements AC 100-120V +/- 10%, 50/60Hz
Operating Temperature 32 F – 104 F (0 C – 40 C)
Operating Humidity 20% - 80%
Operating Pressure 800-1100 hPa
Safety Regulations UL 60950-1, FCC 15B class B, C-UL
Warranty 1 Year Parts & Labor (In Home)
Input/Output Terminals
Input 1 Mini D-sub 15-pin (Analog RGB Signal)
Input 2 DVI-D 24-pin w/HDCP (Digital RGB Signal DVI 1.0 Standard)
Audio Input/Output Terminals
Audio Input 1 (stereo mini)
Audio Input 2 (stereo mini)
Audio Output (stereo mini)
Speaker Output
Accessories
Power Code x 1, Remote Control Unit x 1, AA batteries x 2, Wiping Cloth x 1, Speed Clamps x 5, Display Stands x 2, Washers x 2, Hex Hole Bolts (M8x40) x 2, Remote Control Unit Holder x 1, Ferrite Core (for Power Code) x 2, Ferrite Core (for Audio Cable) x 3, Cable Bands x 2, User's Manual x1, Warranty x1

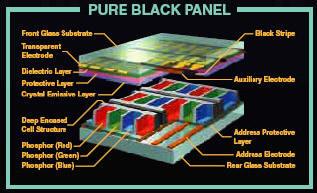

PDP image quality takes another impressive step
forward with Pioneer’s new Pure Black Panel. In addition to our
exclusive Deep Encased Cell Structure, it uses another breakthrough
technology called Crystal Emissive Layer to achieve luminous
efficiency that is much higher than the previous model. The result is
unprecedented high brightness of 1,400cd/m2 (peak/panel) and greatly
improved dark-area contrast. Blacks are blacker, while light areas
maintain their true brightness values. Bright-area contrast is also
significantly higher, meaning that the PDP-425CMX will provide
conspicuous, effective displays in bright places such as shopping
malls, event venues and showrooms.
High efficiency and the best possible picture
quality have been achieved by mounting the color management, scaling,
GUI mix and other image processing technologies on a single chip that
we developed exclusively for our professional monitors. Scaling
performance, a vital factor for professional monitors, has been
improved to ensure that even high resolution signals are reproduced

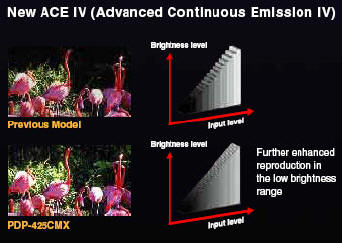

with minimal data loss. In addition, ACE IV technology enables the
panel to accurately reproduce high level gray scale for each color.
The panel instantly identifies the type of image being shown (fast-
vs. slow-motion scenes, dark vs. light scenes) and dynamically
optimizes the distribution of color gradation.

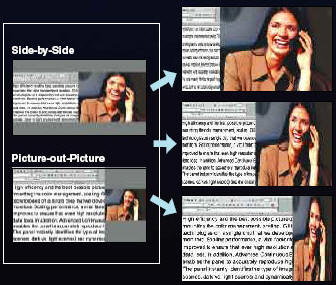

The new Pure Drive Pro image processing engine
greatly improves processing of not only the main image, but also the
sub-image in dual image mode. As a result, a variety of dual-image
displays not previously possible can now be shown, allowing
presentations and product promotions that are impressive and
persuasive.
