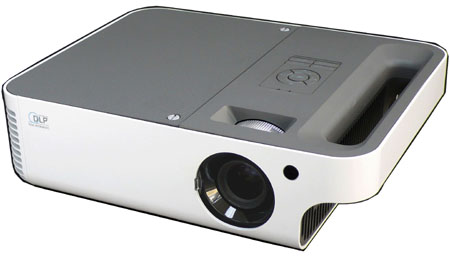

Boxlight Phoenix X35 Portable Video Projector

Boxlight Phoenix X35 MSRP: $2,799

Overview

RAISING PRESENTATION QUALITY. Capable of projecting a brilliant 4000 lumens, this is the brightest of our popular line of Phoenix products. And its clear XGA resolution helps put a crisp edge on any image. The PhoenixX35 projector presents the ideal blend of functionality, high performance and ease of use.

This versatile projector offers a broad range of input-output options and two lamp modes. Password protection ensures secure use, and a custom splash screen lets you put a distinctive spin on the start-up screen. When the unit is ceiling-mounted, the lamps are easily replaced via the top-changing design.

Features

• Resolution 1024 x 768 True XGA
• Brightness 4000 Lumens
• Contrast Ratio 2100:1
• Weighs 3.3 kg / 7.3 lbs
• Aspect Ratio 4:3 Compatible 16:9
• Broad range of input-output options
• Two lamp modes
• Password protection
• Custom splash screen
• Easily replaceable lamps

Projector Review

Specifications

• BRIGHTNESS 4000 Lumens (Standard) 3500 Lumens (Eco)
• RESOLUTION 1024 x 768 True XGA 1280 x 1024 SXGA Compressed
• DISPLAY TYPE 0.7" x 1, 12º DLP
• CONTRAST RATIO 2100 :1
• LAMP 280 watt OSRAM VIP
• LAMP LIFE 2000 Standard 3000 Eco
• ASPECT RATIO 4:3 Compatible 16:9
• DIAGONAL IMAGE SIZE 23” - 300” Inches
• PROJECTION LENS Manual Zoom / Focus
• THROW DISTANCE 3.2’ - 36.7’ Feet 1 - 11.2 Meters
• THROW RATIO 1.8 ~ 2.1 (x screen width)
• ZOOM RATIO 1.15:1
• INPUTS DVI-D / HDCP VGA-in / Component S-Video Composite Video RCA audio (R/L) Audio (Mini jack)
• OUTPUTS Audio (Mini jack) VGA (Out)
• COMPATIBILITY VGA,SVGA,XGA,SXGA, Mac
• EDTV / SDTV / HDTV 480i/p / 720p / 1080i
• PROJECTOR CONTROLS RS232 USB 12V Trigger
• KEYSTONE +/- 15º Vertical
• DIMENSIONS (WxDxH) 12” x 9.6” x 3.4” Inches
• WEIGHT 7.3 Lbs / 3.3 Kg
• VIDEO COMPATIBILITY N TSC / NTSC 4.43 / PAL B/G/H/I/M/N 60 / SECAM
• AUDIO 1 x 3w Mono Speaker
• DECIBEL RATING 35dB (standard) / 33dB (eco)
• WARRANTY 3 year parts & labor / 90 day lamp
• FCC CERTIFICATION F CC-B,UL,C-UL,TUV, CB, CE, CCC
• H-REFRESH RATE Horizontal—15-90 kHz
• V-REFRESH RATE Vertical—50-85 kHz
• POWER SUPPLY AC input 110 ~ 240 Voltage
• POWER CONSUMPTION 330W (standard) 290W (eco)
