Illuminate large
training rooms, conference centers, classrooms, and houses of worship with
stellar brightness and image quality. Four optional user-replaceable bayonet
lenses offering throw ratios from 0.8 to 7.2:1 allow versatility for any
venue and can be changed in three easy steps. Native XGA resolution, 750:1
contrast ratio, and 4500 lumens combine to deliver images that are
captivating and compelling.

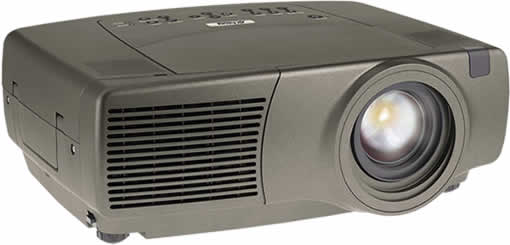

DETAILED SPECS - Proxima
c-450 xga LCD Projector
Native Resolution
XGA (1024 x 768)
Display Technology
0.99" polysilicon TFT with micro lens
array
Input Sources
Computer Sources: Computer 1 (M1-D),
Computer 2 (DSUB-15),
Computer 3 (Component via BNC)
Audio Inputs (Computer): Mini-jack x 2
Video Sources: Video 1 (Component RCA),
Video 2 (S-Video), Video 3 (Composite RCA), Audio Inputs
(Video): Stereo RCA jack (shared)
4500 max ANSI lumens; (standard mode) 3500 max
ANSI lumens (whisper mode)
Brightness
Uniformity
85%
Contrast Ratio
750:1 Full on/Full
off
Number of Colors
16.7 million
H-Synch Range
15 – 91 kHz
V-Synch Range
50 – 120 Hz
Dot Clock
160 MHz
Lens Shift
10:0 – 1:1 motorized vertical lens shift
Digital Keystone
Correction
Horizontal: up to
+/-15° Vertical: up to +/-15°
Conditions:
1024 x 768 @
60Hz
Lens shift:
10:0
Lens:
Standard lens
Projection Lens
(standard)
Zoom Ratio: 1.5:1 Throw Ratio: 1.5 –
2.2:1 (D:W)
Minimum Projection Distance: 3'/0.9 m
Maximum Projection Distance: 45.5'/13.9 m Image offset
ratio (%): on axis to 100% offset
Aspect Ratio
4:3 native
(supports 5:4, 16:9)
Image size
(diagonal)
30" – 300"/76.2 cm – 762.0 cm
Projection Methods
Front, rear and
ceiling
Audio
2x1-watt stereo
Mouse Control
USB via M1
connection
Projector Control
RS-232 (9-pin DSUB),
ProjectorNet (RJ45)
Lamp
320W UHB/1500 hrs
Dimensions
(standard)
16.8" (W) x 12.4"
(L) x 6.4" (H) 42.7 cm (W) x 31.5 cm (L) x 16.3 cm (H)
Weight (standard)
7.7 Kg/17 lbs
Power Supply
100 – 240V at 50 –
60 Hz; auto switching
Operating
Temperature
10 – 35° C at sea level (0' – 10,00');
50 – 95° F
Power Consumption
430 watts
Menu Languages
English, Spanish, French, German,
Japanese, Korean, Portuguese, Italian, Norwegian, Russian, Simplified
Chinese, Traditional Chinese
Audible Noise
40dB (standard
mode); 36dB (whisper mode)
Approvals
FCC A, UL/cUL, CE,
TUV
Lamp Warranty
90 days or 500 hours, whichever comes
first
Product Warranty
2 years parts and
labor
Accessory Warranty
1 year
Ships Standard With:
User Manual, Quick start guide and CD
AV cable (3 x RCA)
RGB PC cable
Power Cord
M1 cable Remote
control (batteries included)
