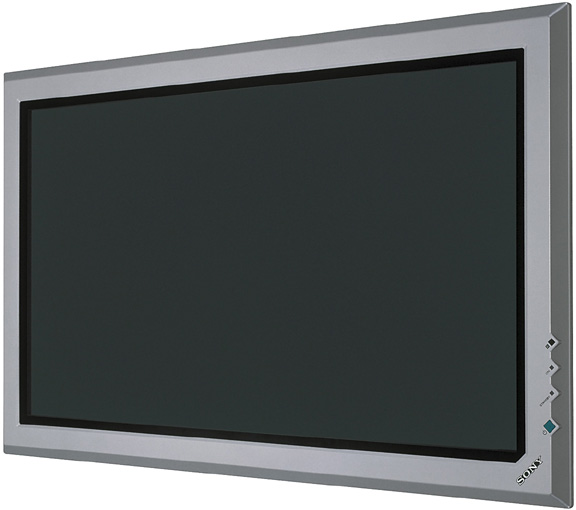

OVERVIEW - sony pfm32c1 plasma tv flat panel monitor

The new Sony PFM32C1 plasma display flat panel monitor is the first 32 inch Plasma display in the Sony Plasma Range which features Sony's unique Real Digital System Technology. Versatile and stylish, the SONY PFM32C1 plasma tv flat screen uses a high resolution flat panel with 1024 x 852 pixels. It can be arranged in any way you desire - in a stand, on a wall or hung from the ceiling, either horizontally or vertically.

The Sony PFM32C1 flat panel monitor, with input connectors for composite, S-video (Y/C), RGB/component signals, you can display your visuals from a wide variety of signal sources, ranging from standard video to HDTV, DTV and computer signals up to UXGA. A built-in high performance scan converter ensures optimum image quality with exact pixel sampling from the original input source, providing high quality pixel-by-pixel image reproduction.

• Real Digital System
• High-Definition Flat Panel
• Anti-reflection coating
• Versatile and Stylish
• Multiple Inputs with High-Performance Scan Converter
• High quality digital audio amplifier and an optional speaker system
• Picture Mode function - three user presets and two fixed sets of parameters
• Selectable Aspect ratios of Wide Zoom, Letter Box Zoom, Restore, Subtitle or
• Normal 4:3 selectable
• Size control and Shift control
• Picture Zoom
• 24 hour on/off timer and sleep function
• Power saving function
• Screen saver functions - Picture Orbiting & Picture Inversion
• Worldwide power supply range

SPECIFICATIONS - SONY pfm-32c1 PLASMA DISPLAY FLAT PANEL MONITOR

Picture Performance

• Resolution: 1024 x 852 pixels
• Pixel pitch: 0.84 x 0.39 mm
• Active area (W/H): 715.68 x 399.36
• Viewable picture area: 32-inch / 820 mm (diagonal)
• Driver: 8-bit RGB
• Colours: 16.8 million colours simultaneously
• Type: AC-type Plasma Display Panel with anti-reflection screen
• Sampling rate: 13.5 to 140 MHz

• Input1 / Input2: D-sub 15-pin
• RGB: 0.714 Vp-p/non-composite. 1.0 Vp-p/composite, 75 ohms
• YUV: 0.7 Vp-p/non-composite (U/V). 1.0 Vp-p/composite (Y), 75 ohms
• Audio: Stereo mini-jack, 500 mV rms, high impedance
• COMPOSITE IN: BNC, 1.0 Vp-p ± 2 dB sync negative, 75 ohms automatic termination
• Y/C IN: Mini DIN 4- pin
• Y: 1.0 Vp-p ± 2 dB sync negative, 75 ohms
• C: 0.286 Vp-p ± 2 dB sync negative (NTSC), 75 ohms 0.3 Vp-p ± 2 dB sync negative (PAL), 75 Z
• AUDIO IN: Stereo mini jack, 500 mV rms, high impedance
• COMPOSITE OUT: Loop-through BNC
• Control S IN/OUT: Stereo mini jack, 5.0 Vp-p
• REMOTE (RS-232C): D-sub 9-pin
• SPEAKER OUT (L/R): 7 W + 7 W (impedance : 6 ohms)

• Power requirements: AC 100 to 240 V, 50/60 Hz, 3.2 to 1.6 A
• Power consumption: 270 W
• Operating temperature: 0 to 35 degrees C
• Storage temperature: -10 to 40 degrees C
• Humidity: 20 to 90 % no condensation
• Dimensions: 838 x 521 x 97 mm
• Mass: 22 kg / 48.4 lbs

Sony is pleased to announce the introduction of its newest SuperSlim Flat Panel Monitor and its related accessories. It's so new that some of the details (like weight) have not been announced yet. The PFM-32C1 (32” viewable area, measured diagonally) is a high-resolution 16:9 widescreen flat panel display with 1024 x 852 pixels. With excellent installation flexibility, this slim lightweight display provides large, superb, quality images in the smallest amount of space. It boasts the following features:

Hi Brightness - New ALIS Plasma Display Panel (PDP) offers increased brightness and higher contrast ratio than previous models.

Built-in Anti-reflective Screen - Diffuses reflective light for a variety of installation options. Increases contrast, crisp detail and color purity.

Low picture noise - Minimized picture noise enhances black performance for sharp detail.

Internal Scan Converter - Provides the Sony PFM323C1 the ability to handle sources from 15.7kHz to 100kHz, in a 1024 x 852 resolution. Supports NTSC, PAL, SECAM, PAL-M, NTSC4.43, PAL 60, 1080/24PsF, 1080/50I, 575/50p, 480/60p, 1080/60I, 720/60p, VGA, UXGA, XGA, and SXGA.

Accepts High Resolution Signals - An analog HDTV signal can be directly connected to the Sony PFM-32C1 Plasma Display Flat Panel Monitor as either RGB or Y Pb Pr.

Color Temperature/Dot Phase Adjustment - Adjust color temperature through six settings, each with its own label. Also adjust Dot Phase to fine-tune computer images on the Sony PFM32C1 Flat Panel Display.

20 Video Memory Settings - Store monitor data in memory for a wide range of video sources for quick recall.
