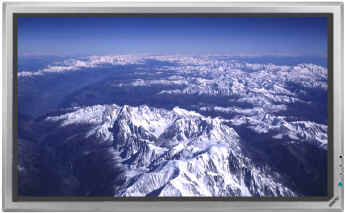

The
Sony PFM-42B1 Plasma Display uses a high resolution 42 inch flat panel monitor
with 1024 x 1024 pixels. Achieving excellent brightness and contrast,
it produces sharp, detailed pictures with rich and natural colours.
With the Sony original I/P conversion technology, you will see precise
and smooth images throughout the flat panel screen and the anti-reflection
coating on the glass panel, reduces light reflection for clear,
high contrast pictures. Provides striking visuals with outstanding
viewer impact.
Sony
PFM-42B1 42 inch XGA Plasma Monitor
NO LONGER AVAILABLE
Main
Highlights of the Sony Plasma Display PFM42B1 Flat Panel
Monitor:
High
Resolution 1024 x 1024 pixels
Horizontal/Vertical
viewing flexibility
UXGA
Signal capability
Flexible
aspect ratio
20
Video Memory Settings
Color
Temperature/Dot Phase Adjustment
Features
of the Sony PFM42B1 Plasma Screen Flat Panel Monitor:
High Resolution 1024 x 1024 Images -1024 x 1024 pixels for excellent
brightness and contrast and smooth images throughout the screen
in any video format
Anti-reflection glass coating - Reduces light reflection
for clear, high contrast pictures
Lightweight and Slim Cabinet - 65.5 lbs and 3 1/4 inches
thick for easy, flexible mounting anywhere
High-performance Scan Converter - Optimum image quality with
exact pixel sampling from the original input source, providing high
quality pixel-by-pixel image reproduction using Sony's new, exclusive
Automatic Dot Phase Adjustment
Six language On-Screen Display - Quick and simple setup in
English, French, German, Italian, Spanish and Japanese
Selectable Aspect Ratio - Choose from widescreen 16:9, wide
zoom, Letter Box zoom and standard 4:3 for flexible presentations
Size Control - Adjusts picture both vertically and horizontally
Picture Zoom - Zoom in on a section for a closer look; allows
multiple flat panels to be used for video wall applications
Self Diagnosis Alarm - Easy maintenance access to confirm
a diagnosis on the status menu, service code indicator or via the
RS232C port
Color Temperature/Dot Phase Adjustment - Optimizes the scan
converter sampling phase to the input signal and allows for up to
six color temperature settings
Screen Saver Function - Picture orbiting and picture inversion
assist in more uniform use of the pixels
160 degree viewing angle - Wide angle for large groups and
distance viewing
Multiple Inputs for composite, S-video and RGB/Component
- Displays visuals from a wide variety of signal sources, ranging
from standard video to HDTV, DTV and computer signals up to UXGA.
Bezel Colors - Select hi-tech brushed silver or elegant
charcoal gray bezels to match any presentation environment,
from retail P.O.P. to corporate lobbies to home theater.
Warranty
: The Sony PFM42b1 Plasma TV Screen comes with a 3 year parts and labor warranty, One year Glass from Sony America
Sony
PFM-42B1 Plasma TV Flat Panel Monitor Specifications: (more detailed at bottom)
Screen
Size: 42" Diagonal
Aspect
Ratio: 4:3 or 16:9
Pixels:
1024(H) x 1024(V)
Colors:
16.77 million colors
View
Angle: 160 Degrees
Video
Standards Supported: NTSC, PAL, SECAM, PAL-M, PAL 60 Hz, NTSC-4.43
Computer
Video Supported:
SDTV
DTV
HDTV
UXGA
Dimensions:
40.62"(W) x 24.81"(H) x 3.25"(D)
Weight:
65.5 lbs.
Power:
AC 100 to 240V, 50/60Hz
Inputs:
BNC
Mini
DIN 4 pin
D-sub
15 pin
D-sub9pin
Mini-jack
42"
Diagonal
1024(H)
x 1024(V)
16.77
million colors
160
Degrees
65.5
lbs.
Sony
PFM-42b1 42 inch plasma screen flat panel monitor specs
Sony Plasma PFM42B1 Picture Performance
Panel
Resolution 1024 x 1024 pixels
Pixel
pitch 0.90 x 0.51 mm
Active
area (W/H) 921 x 522 mm
Viewable
picture area 42-inch/1,058 mm (measured diagonally)
Driver
10-bit RGB
Colors
16.8 million colors simultaneously
Type
AC-type Plasma Display Panel with anti-reflection screen
Color
system NTSC/PAL/SECAM/NTSC4.43 /PAL-M/PAL 60
Sampling
rate 13.5 to 140 MHz
Sony Plasma PFM42B1 Input/Output
INPUT1/INPUT2
D-sub 15-pin
RGB
0.714 Vp-p/non-composite, 1.0 Vp-p/
composite,
75
YUV
0.7 Vp-p/non-composite (U/V), 1.0 Vp-p/
composite
(Y), 75
AUDIO
Stereo mini jack, 500 mV rms, high impedance
VIDEO
COMPOSITE IN BNC, 1.0 Vp-p ±2 dB sync negative, 75 automatic termination
Y/C
IN Mini DIN 4-pin
Y
1.0 Vp-p ±2 dB sync negative, 75
C
0.286 Vp-p ±2 dB sync negative (NTSC), 75
0.3
Vp-p ±2 dB sync negative (PAL), 75
AUDIO
IN Stereo mini jack, 500 mV rms, high impedance
COMPOSITE
OUT BNC, loop-through
AUDIO
OUT Stereo mini jack, 500 mV rms, high impedance
REMOTE
(RS-232C) D-sub 9-pin
Sony Plasma General
Power
requirements AC 100 to 240 V, 50/60 Hz, 4.5 to 1.8 A
Power
consumption 400 W max.
Operating
temperature 0 to 35 °C (32 to 95 °F)
Storage
temperature -10 to 40 °C (14 to 104 °F)
Humidity
20 to 90 %, no condensation
Dimensions
(W/H/D) 1033 x 631 x 83 mm
(40
3 /4 x 24 7 /8 x 3 1 /4 inches)
Weight
29.7 kg (65.5 lb)
Sony Plasma PFM42B1 Supplied Accessories
AC
Power Cord, AC Plug Holder (2), Remote Commander RM-42B, Size
AA (R6)
Battery
(2), Operating Instructions
Regulation Compliance
UL1950,
CSA No.950 (c-UL), CE LVD (EN60950), Dentori Otsu, FCC Class B,
IC
Class B, VCCI Class B, CE EMC (EN55022 Class-B, EN55024, EN61000-3-2,
