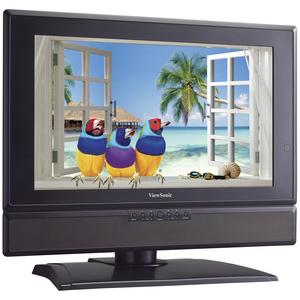

Viewsonic N2050W 20 inch HDTV Lcd Tv Monitor n2050w

KEY POINTS - Viewsonic N2050W 20 inch True HDTV LCD TV Monitor with Built in Tuner:

1366x768 resolution

8ms video response time

brightness of 500 nits (typ)

contrast ratio of 1000:1 (typ)

Advanced ClearPicture image processing

3:2 pull-down

Connections for all your multimedia components

integrated TV tuner offering full picture-in-picture (PIP) capability

ultra-high fidelity 10-watt (SRS) audio system

SUMMARY - Viewsonic n2050w 20 inch True HDTV LCD TV Monitor with Built in Tuner:

ViewSonic's N2050w 20" widescreen LCD TV is versatile in entertainment and desktop environments and can be enjoyed in small spaces like the bedroom, kitchen, or even your RV. ClearPicture electronics enhance screen performance to deliver superior pictures while the sleek design and 10-watt high-quality sound system give you that theater feel. Guaranteed to turn heads, the progressive scan and 3-D comb filter boost COLOR AND CONTRAST TO HIGHER LEVELS OF PRECISE DETAIL. HDCP (high-definition content protection) capability ensures long-term compatibility with evolving technology. For your multimedia enjoyment choose the N2050w by ViewSonic.

DETAILED SPECS - VIEWSONIC N2050W HDTV LCD MONITOR

LCD Panel

Type

20" color TFT active matrix, wide LCD

Display Area

17.5" horizontal x 9.8" vertical; 20.1" diagonal

Optimum Resolution

1366x768

Contrast Ratio

1000:1 (typ)

Viewing Angle

176? horizontal, 176? vertical

Response Time

8ms gray-to-gray (avg)

Brightness

500 cd/m2 (typ)

Light Source

Long life, 50,000 hrs. (typ)

Aspect Ratio

16:9

Glass Surface

Anti-reflective coat

INPUT

RGB analog (75 ohms, 0.7 Vp-p)

TV/cable, composite (RCA), component YPbPr/YCbCr, S-video

Audio

3.5mm mini stereo audio in/out and RCA (left/right) audio in

RGB Frequency

Fh: 30~64kHz, Fv: 60~75Hz

Sync

H/V separated (TTL)

Tuner

NTSC

AUDIO OUTPUT

Speakers

2x5-watt

INPUT SIGNAL

TV/Video Comp.

480i, 480p, 720p, 1080i

COMPATIBILITY

Compatible from VGA up to 1280x768 non-interlaced

Mac

Power Mac™ G3/G4/G5 up to 1280x768

CONNECTOR

Analog

15-pin mini D-sub (VGA)

Power

3-pin plug

POWER

Voltage

AC 100-240V (universal), 47-63Hz

Consumption

100W (typ)

CONTROLS

Basic

Power, enter, channel +/-, volume +/-, menu, source

OnView (PC mode)

Video adjust, auto adjust, contrast, brightness, H. position, V. position, H. size, fine tune, SRS, language, bass, treble, volume, PIP, position, source, audio select, clock, color temperature

(Video mode)

Picture (contrast, brightness, color, tint, sharpness, black level, color temperature), sound (volume, balance, bass, treble, SRS), audio select, source (TV, AV, S-video, YCbCr, YPbPr, VGA), parental control (caption, PIN password, TV ratings, MPAA movie ratings, V-chip temporary disable), PIP, position, language, reset

(TV mode)

MTS, TV/CATV, auto scan, set channel, channel delete, label, favorite, fine tune

REGULATIONS

UL, cUL, FCC, NOM, CB

DIMENSIONS
(WxHxD)

Physical (mm)

546mm x 461mm x 162mm

Physical (in.)

21.5" x 18.1" x 6.4"

OPERATING CONDITIONS

Temperature

32-104?F (0-40?C

Humidity

10-85% (non-condensing)

WEIGHT

Net

17.6 lb. (8.0 kg)

Gross

23.1 lb. (10.5 kg)

PACKAGE CONTENTS

LCD TV display, power cable(s), remote control with batteries, VGA cable, RCA A/V cable, Quick Start Guide, User Guide

WARRANTY

One-year limited warranty on parts and backlight

Manufacturer Homepage: www.viewsonic.com
