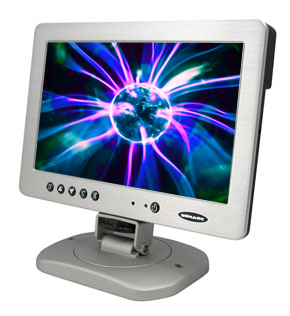

Xenarc 1020YV 10.2 inch TFT LCD Monitor w/ VGA & AV inputs

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click ADD TO CART button to see our price. Clicking does not commit you to purchase.

Back to Xenarc LCD Main

Xenarc Technologies Corp. is one of the first LCD manufacturers to introduce a 10.2" LCD screen with VGA input.  In-Car computing is the next step in computing technology, and we are committed to serving this up and coming technology sector.

Don't mistake this monitor for an ordinary video monitor that displays composite video.  This 10.2" monitor has 800 x 480 pixels (2400 x 480 sub-pixels) that help display crystal clear texts and ultra-sharp images through your computer's VGA signal.

The brushed, anodized aluminum face plate gives the monitor a futuristic yet elegant look.  The entire enclosure is constructed with aluminum, making the unit both strong and light weight.  The thin profile (only 1.19") makes the monitor very space saving.

This monitor comes included with an instruction manual, an aluminum monitor stand, a U-Shape mount, an AC adaptor, a connection cable, and a cigarette lighter car adaptor.

Please take a look at the touch screen version 1020TSV if you need a touch screen.

• For In-Car Computing, PC, Server, GPS, and various VGA Use
• VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• Picture In Picture / Split Screen
• Audio Input / Built-in Speaker
• NTSC / PAL Multi-System
• 16x9 Aspect Ratio
• High Resolution Display - up to 1024 x 768
• Adjustable backlight level for night-time use
• Dimmer Button for night-time use
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input memory
• Last Power setting memory
• IR Remote Control
• Auto power-on upon signal detection
• Automatic display adjustment
• On Screen Display Control
• Mirror Image Flip (VGA and Video Modes)
• Vertical Image Flip (VGA and Video Modes)
• Desktop Stand: 360° Adjustment
• VESA mounting holes
• 20-Pin heavy-duty connector
• Brushed, anodized aluminum face plate
• Aluminum Casing
• Supports 11V DC ~ 24V DC
• "E" Mark Certified for Automotive use

• Model #: 1020YV
• Screen Size:  Diagonal 10.2"  (16:9)
• Physical Resolution: 800 (H)  x 480 (V) WVGA
• Supported Resolution:  640 x 480 ~ 1024 x 768
• Dot Resolution: 2400 x 480 = 1,152,000 (dots)
• LCD Brightness: 500 cd/m²
• Contrast Ratio: 300:1
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 11V ~ 24V, 1A
• Power Supply: DC 12V
• Power Consumption:  <8W
• Operating Temperature:  23°F ~ 158°F
• Storage Temperature:  -40°F ~ 203°F
• Dimension (in):  10.44W x 7.31H x 1.19D
• Weight (lb):  3.2
• FCC, CE, E13 Certification
• ROHS Compliant
• 18 Month Warranty

Manufacturer Homepage: www.xenarc.com
