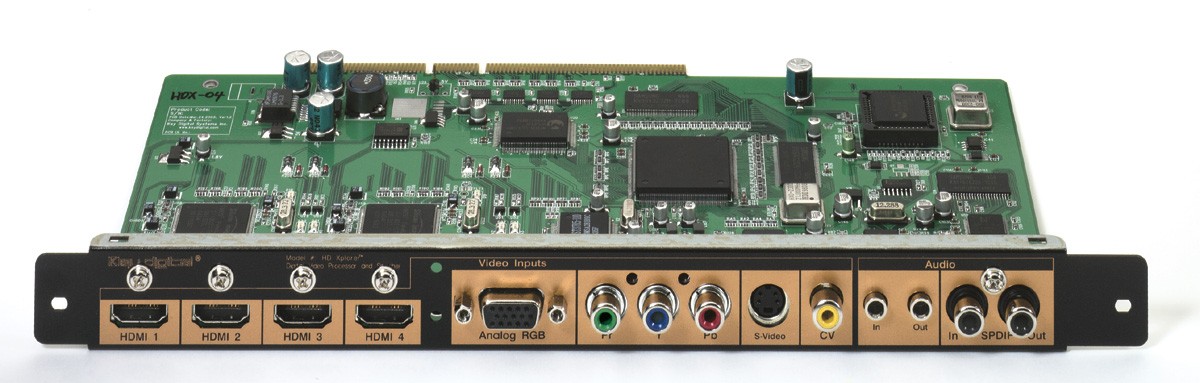

KEY POINTS - KDPC2 Key digital digital video processor and video switcher plug-in card with 4 HDMI inputs:
4x HDMI w/HDCP digital inputs
Separate analog video connectors for RGB (HV), S-Video, Component Video (YPbPr), Composite Video (CV)
RS-232 control via the Pioneer Plasma Display:
All-internal connections from the KD-PC2 card to the Pioneer Plasma Display through the Pioneer Plasma expansion card slot ensure crystal-clear HDTV images
Sizes any video source to precisely match the display Pioneer's native resolution
Supports all popular HD and SD source formats and resolutions, 60 Hz and 50 Hz, plus NTSC and PAL
A true digital video processor, lets users adjust the picture with more controls than many of today Pioneer displays
Audio lip sync delay control, to conveniently compensate audio video delay up to 10 video frames
Firmware-upgradeable directly through the KD-PC1 15-pin VGA connector:
Built-in Test Patterns available through the IR Remote Control, as well as RS-232
Unit Weight: 3 lbs
Unit Width: 11 inches
Unit Height: 8.5
Unit Depth: 1 inch
SUMMARY - Key digital kdpc2 digital video processor and video switcher plug-in card with 4 HDMI inputs:
A Digital Video Plug-in Card & Processor for Pioneer Plasma Displays. USA models: PRO-1010HD, PRO-810HD, PDP-434CMX, PDP-425CMX, PDP-427CMX, PDP-504CMX, PDP-505CMX, PDP-507CMX, PDP-607CMX Europe/International models: PDP-60MXE20 PDP-50MXE20 PDP-42MXE20 PDP-42MXE10 PDP-50MXE11 PDP-50MXE10 PDP-43MXE10 PDP-42MXE10 PDP-50MXE1
KD-PC2 by Key Digital is the most advanced digital video processor and video switcher plug-in card available today for Pioneer Plasma Displays. USA models: PRO-1010HD, PRO-810HD, PDP-434CMX, PDP-425CMX, PDP-427CMX, PDP-504CMX, PDP-505CMX, PDP-507CMX, PDP-607CMX Europe/International models: PDP-60MXE20 PDP-50MXE20 PDP-42MXE20 PDP-42MXE10 PDP-50MXE11 PDP-50MXE10 PDP-43MXE10 PDP-42MXE10 PDP-50MXE1. KD-PC2, with HDMI (HDCP) digital inputs and multiple analog inputs, is a full-function digital video processor that pristinely converts input video formats to the native resolution of the Pioneer Plasma display. Four HDMI with HDCP inputs ensure pristine, all-digital plug-and-play interface to Pioneer Plasma Displays. Conveniently, there are separate analog video input connectors for RGB (HV), Component Video (YPbPr),
S-Video, Composite Video (CV).
DETAILED SPECS - KEY DIGITAL
KD-PC2 HDMI VIDEO CARD:
General:
Pioneer Plasma video card and processor
Specifically engineered for operation in Pioneer Plasma
Display models:
PDP-504, 505, 507, 607CMX: Native 1280x768 WXGA
PDP-425, 434CMX: Native 1024x768 XGA
All internal connections from the KD-PC1 card to the Pioneer
Plasma Display via the Pioneer Plasma ES (Expansion Solutions) card slot.
Four (4) HDMI Inputs:
Select any HDMI digital input (or any analog video input)
To support DVI-D Video I/O, use Key Digital
HDMI<>DVI adapter cables
Supports EDID and HDMI plug-and-play capability
Supports HDCP Copy Protection
Individual Analog Video Inputs supported:
Select any analog video input (or any HDMI digital input)
Separate analog video connectors for RGB (HV), S-Video, Component Video (YPbPr), Composite Video (CV)
NTSC and PAL
Audio In and Out with individual connectors for:
Analog audio left and right stereo pair and SPDIF digital audio
Process and scale any HDMI digital video or any analog input to match the native resolution of your Pioneer Plasma
Display:
Using world-renowned Key Digital Clear Matrix Pro technology
A full-function, high-quality Video Processor is included
Supports all popular source formats and resolutions
Easy to control and operate:
Easy-to-operate IR Remote Control
RS-232 control via the Pioneer Plasma Display
Does not interfere with the operation of your Pioneer Plasma Display
Does not interfere with A/V sources connected directly to your Pioneer Plasma Display
Video Inputs:
HDMI Digital Video (HDMI is plug-and-play and also supports audio):
Four (4) separate Input connectors, labeled “HDMI 1” through “HDMI 4”
To support DVI-D Video, use Key Digital® HDMI<>DVI adapter cable(s)
Supports HDCP Copy Protection
Analog Video (individual analog video connectors for each of the following video interfaces):
RGB(HV)
Component Video (YPbPr)
S-Video: NTSC, PAL
Composite Video (CV): NTSC, PAL
Audio Inputs and Outputs:
Analog audio left and right stereo pair input and output
SPDIF digital audio input and output
Video Input Formats Supported:
Supports the following popular video Input Formats:
720 x 480i @ 60 Hz
720 x 480p @ 60 Hz
1280 x 720p @ 60 Hz
1920 x 1080i @ 60 Hz
Accepts and automatically detects 60 Hz and 50 Hz input
formats (the output frame rate will be the same as the input
frame rate), and PAL analog on the S-Video and Composite
Video inputs
Video Processing Functions:
Edge Enhancement, Brightness, Contrast
Saturation, Tint
Individual display Calibrations for RGB Gain and Setup
H & V Size, H & V Position
Zoom (Output Aspect Ratio processing), including options to
prevent monitor burn-in for Letterbox or Pillarbox images:
Normal
Vertical Zoom In/Out Horizontal Zoom In/Out
Horizontal and Vertical Zoom In/Out
Built-in Test Patterns help you set-up your video system (all patterns available through the OSD from the IR Remote, as well as RS-232):
White screen Color bars
Gray scale Horizontal wide ramp
Vertical wide ramp
Status and Control
Stores your custom settings for each HDMI and analog video input
Easy-to-operate IR Remote Control
RS-232 control via the Pioneer Plasma Display:
Compatible with Crestron, AMX, Elan, Control4, Xantech
Firmware-upgradeable directly through the KD-PC1 15-pin VGA connector:
The Firmware Upgrade cable provided with the KD-PC1 must be used
Built-in Test Patterns available through the IR Remote Control, as well as RS-232
Connectors:
HDMI Digital Video (also supports audio):
4 x HDMI Type A 19-pin connector
Analog Video:
RGB(HV): mini D-sub 15-pin connector
Component Video (YPbPr): 3 x color-coded RCA female connectors
S-Video: 1 x S-Video connector
Composite Video (CV): 1 x RCA female connector
Audio:
Analog stereo Left & Right Audio:
1 x stereo mini jack input
1 x stereo mini jack output
SPDIF digital audio:
1 x RCA female connector input
1 x RCA female connector output
RS-232C: D-sub 9-pin on the Pioneer Plasma Display
Included Accessories :
Two (2) Audio cables
One (1) special Firmware Upgrade cable
IR Remote Control with batteries
Mechanical:
Product size: 11.2” x 8.6” x 1.0”, fits in the ES (Expansion Solutions) Slot of the Pioneer Plasma Display
