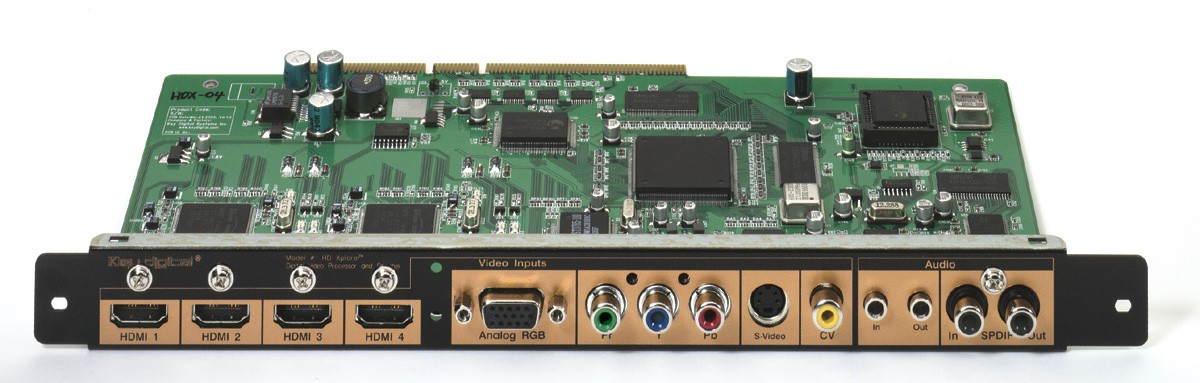

OVERVIEW - Key digital hdxplorer digital video processor and video switcher plug-in card
with 4 HDMI inputs:
HD Xplorer by Key Digital is the most advanced
digital video processor and video switcher plug-in card available today for
Pioneer Plasma Displays. USA models: PDP-434CMX, PDP-425CMX, PDP-504CMX,
PDP-505CMX, PDP-507CMX, PDP-607CMX and Europe/International models: PDP-50MXE1,
PDP-50MXE1-S, PDP-43MXE1, and PDP-MXE1-S. HD Xplorer, with HDMI (HDCP) digital
inputs and multiple analog inputs, is a full-function digital video processor
that pristinely converts input video formats to the native resolution of the
Pioneer Plasma display. Four HDMI with HDCP inputs ensure pristine, all-digital
plug-and-play interface to Pioneer Plasma Displays. Conveniently, there are
separate analog video input connectors for RGB(HV), Component Video (YPbPr),
S-Video, Composite Video (CV).
FEATURES - Key digital HDXplorer digital video processor and video switcher plug-in card
with 4 HDMI inputs:
4x HDMI w/HDCP digital inputs
Separate analog video connectors for RGB(HV),
Component Video (YPbPr), S-Video, Composite Video (CV)
Analog audio left and right stereo pair and SPDIF
digital audio
RS-232 control via the Pioneer Plasma Tv Display
All-internal connections from the HD Xplorer card to the Pioneer Plasma Display through the Pioneer Plasma expansion card slot ensure crystal-clear HDTV images
Sizes any video source to precisely match the display’s native resolution
Supports all popular HD and SD source formats and resolutions, 60 Hz and 50 Hz, plus NTSC and PAL
A true digital video processor, lets users adjust the picture with more controls than many of today’s displays
Audio lip sync delay control, to conveniently compensate audio – video delay up to 10 video frames
Stores your custom settings for each HDMI and
analog video input
Firmware-upgradeable directly through the HD
Xplorer
15-pin VGA connector
Built-in Test Patterns help you set-up your video
system (all patterns available through the OSD from the IR
Remote, as well as RS-232)
Unit Weight: 3 lbs
Unit Width: 11 inches
Unit Height: 8.5
Unit Depth: 1 inch
SPECIFICATIONS - KEY DIGITAL HD XPLORER HDMI VIDEO CARD:
General
Pioneer Plasma
video card and processor
Specifically
engineered for operation in Pioneer Plasma Display models:
PDP-504CMX:
Native 1280x768 WXGA
PDP-434CMX:
Native 1024x768 XGA
All internal
connections from the HD Xplorer card to the Pioneer Plasma Display
via the Pioneer Plasma ES (Expansion Solutions) card slot
Four (4) HDMI
Inputs:
Select any
HDMI digital input (or any analog video input)
To support DVI-D
Video I/O, use Key Digital HDMI<>DVI adapter cable(s)
Supports EDID
and HDMI plug-and-play capability
Supports HDCP
Copy Protection
Individual
Analog Video Inputs supported:
Select any
analog video input (or any HDMI digital input)
Separate
analog video connectors for RGB(HV), Component Video (YPbPr),
S-Video, Composite Video (CV)
NTSC and PAL
Audio In and
Out with individual connectors for:
Analog audio
left and right stereo pair and SPDIF digital audio
Process and
scale any HDMI digital video or any analog input to match the native
resolution of your Pioneer Plasma Display:
Using
world-renowned Key Digital Clear Matrix Pro technology
A
full-function, high-quality Video Processor is included
Supports all
popular source formats and resolutions
Easy to control
and operate:
Easy-to-operate IR Remote Control
RS-232
control via the Pioneer Plasma Display
Does not
interfere with the operation of your Pioneer Plasma Display
Does not
interfere with A/V sources connected directly to your Pioneer
Plasma Display
Video Inputs
HDMI Digital
Video (HDMI is plug-and-play and also supports audio):
Four (4)
separate Input connectors, labeled “HDMI 1” through “HDMI 4”
To support DVI-D
Video, use Key Digital HDMI<>DVI adapter cable(s)
Supports HDCP
Copy Protection
Analog Video
(individual analog video connectors for each of the following video
interfaces):
RGB(HV)
Component
Video (YPbPr)
S-Video:
NTSC, PAL
Composite
Video (CV): NTSC, PAL
Audio Inputs and
Outputs
Analog audio
left and right stereo pair input and output
SPDIF digital
audio input and output
Video Input
Formats Supported
Supports the
following popular video Input Formats:
720 x 480i @
60 Hz
720 x 480p @
60 Hz
1280 x 720p @
60 Hz
1920 x 1080i
@ 60 Hz
Accepts and
automatically detects 60 Hz and 50 Hz input formats (the output
frame rate will be the same as the input frame rate) , and PAL
analog on the S-Video and Composite Video inputs
Video Processing
Functions
Edge
Enhancement, Brightness, Contrast
Saturation,
Tint
Individual
display Calibrations for RGB Gain and Setup
H & V Size, H &
V Position
Zoom (Output
Aspect Ratio processing), including options to prevent monitor
burn-in for Letterbox or Pillarbox images:
Normal
Horizontal
Zoom In/Out
Vertical Zoom
In/Out
Horizontal
and Vertical Zoom In/Out
Built-in Test
Patterns help you set-up your video system (all patterns available
through the OSD from the IR Remote, as well as RS-232):
White screen
Color bars
Gray scale
Horizontal
wide ramp
Vertical wide
ramp
Status and
Control
Stores your
custom settings for each HDMI and analog video input
Easy-to-operate
IR Remote Control
RS-232 control
via the Pioneer Plasma Display:
Compatible
with Crestron, AMX, Elan, Control4
Firmware-upgradeable directly through the HD Xplorer 15-pin VGA
connector:
The Firmware
Upgrade cable provided with the HD Xplorer must be used
Built-in Test
Patterns available through the IR Remote Control, as well as RS-232
Connectors
HDMI Digital
Video (also supports audio):
4 x HDMI Type
A 19-pin connector
Analog Video:
RGB(HV): mini
D-sub 15-pin connector
Component
Video (YPbPr): 3 x color-coded RCA female connectors
S-Video: 1 x
S-Video connector
Composite
Video (CV): 1 x RCA female connector
Audio:
Analog stereo
Left & Right Audio:
1 x stereo
mini jack input
1 x stereo
mini jack output
SPDIF digital
audio:
1 x RCA
female connector input
1 x RCA
female connector output
RS-232C: D-sub
9-pin on the Pioneer Plasma Display
Included
Accessories
Two (2) Audio
cables
One (1) special
Firmware Upgrade cable
IR Remote
Control with batteries
Mechanical
Product size:
11.2” x 8.6” x 1.0”, fits in the ES (Expansion Solutions) Slot of
the Pioneer Plasma Display
